Quick Details

  • Place of Origin: Shaanxi, China (Mainland)
  • Brand Name: GAIMC
  • Model Number: GTM102
  • Usage: Industrial
  • Theory: Temperature Transmitter
  • Accuracy: ≤0.2% or 0.2K
  • Temperature range: -200~+850℃
  • Output: 4-20mA
  • Input: Pt100, Cu50, Pt1000, K, S, R, B, N, E, J, T
  • Power: 9-30VDC
  • Lightening protection: ±4000V (5 times)
  • Range setting: Slide switch
  • Current limitation: ≤25mA
  • Response time: 1S
  • EFT interference resistance: ±4000V
  • Temperature drift: 0.008%FS/1℃
  • Product name: GTM102 alarm function PT100 temperature transmitter

Packaging & Delivery

Packaging Details: Temperature Transmitter with netural export package
Delivery Detail: 10 days after payment confirmed

GTM102 alarm function PT100 temperature transmitter



Related product







Product Description





Description



GTM102 slide switch universal input temperature transmitter is an intelligent two-wire PC programmable transmitter with its range set by slide switch.



It could linearize thermocouple and RTD input for 4-20mA (two-wire) output and transmit the output signal to system control equipment like DCS or PLC with features of sensor damage or short circuit preset.



The product is powered by output circuit (no separate power needed) and shall be installed in junction box of temperature sensor.



Installation opening is in cylinder shape for fitting different size of junction box. With installation frame, GTM102 could also installed on DIN rails.





Features



1. GTM102 adopts circuit design with lightening protection and EFT resistant function, thus the product is lightening resistant. The product could protect related equipment effectively under 5 continous inductive thunder (≤±4000V)



2. Both input and output could resist ±4000V EFT interference.



3. GTM102 transmitter could effectively protect equipment damage from faradism, switch on and off of high capacity equipment in power system, line fault, switching, operation of frequency conversion equipment or welding machine, etc.



4. Product with compact structure design and easy for installation.



5. Super low consumption inner circuit design will greatly reduce temperature drift caused by heat dissipation of instrument components. This had improved long period stability of the product and prolonged its service life.



6. Operating temperature range for the product is -40~+85℃. GTM102 transmitter could operate under harsh environment.



Specification



Item Data
Configuration modeSlide switch + PC programmable
Separate power debuggingNo
InputPt100, Cu50, Pt1000, K, S, R, B, N, E, J, T
Temperature range-270~+1820℃(according to capability of the sensor)
Accuracy≤0.2% or 0.2K
Output4-20mA (two-wire)
Alarm

In case of sensor failure (open or short circuit), output of GTM102 will decrease to

≤3.6mA or increase to ≥21.5mA

Calculation of max. load(Power V-9V)/ 0.025A (Output current)
Current limitation≤25mA
Power9-30VDC
Response time1S
Lightening protection ±4000V (5 times)
EFT interference resistance±4000V
RFI (radio frequency interference) resistance>10V/m (80MHz-1000MHz)
Operating temperature range-40~85℃
 Temperature drift0.0118%FS/1℃
Long period stability≤0.1℃ / year or 0.05% / year

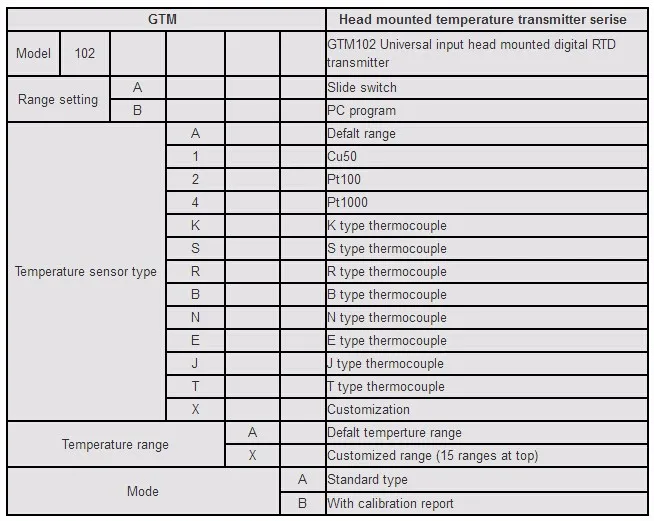

Type selection

Note:

1. Please confirm temperature measurement range and input type before ordering.

2. Note us for your measurement range if it is not in our standard range list.

3. Default alarm is switched off. Please inform us if this function is needed.

4. Default product shall not be used for explosion conditions, please note us if you need explosion proof function.



Type selection process



Select main model according to requirement, the whole process shall be main model + range setting + sensor type + measurement range + mode.
